Series:SLC 500
Module Type:Analog Input
Number of Channels:16
Input Voltage Range:-20 to +20 VDC
Absolute Input Voltage:+/- 7.5 VDC or +/- 7.5 VAC RMS
Input Range:-20 to +20 mA
Current Rating:Backplane current draw: 35 mA at 5 V, 85 mA at 24 V
Overvoltage Protection:7.5 VAC RMS
Isolation:Backplane: 500 VDC, Enclosure: Open Type

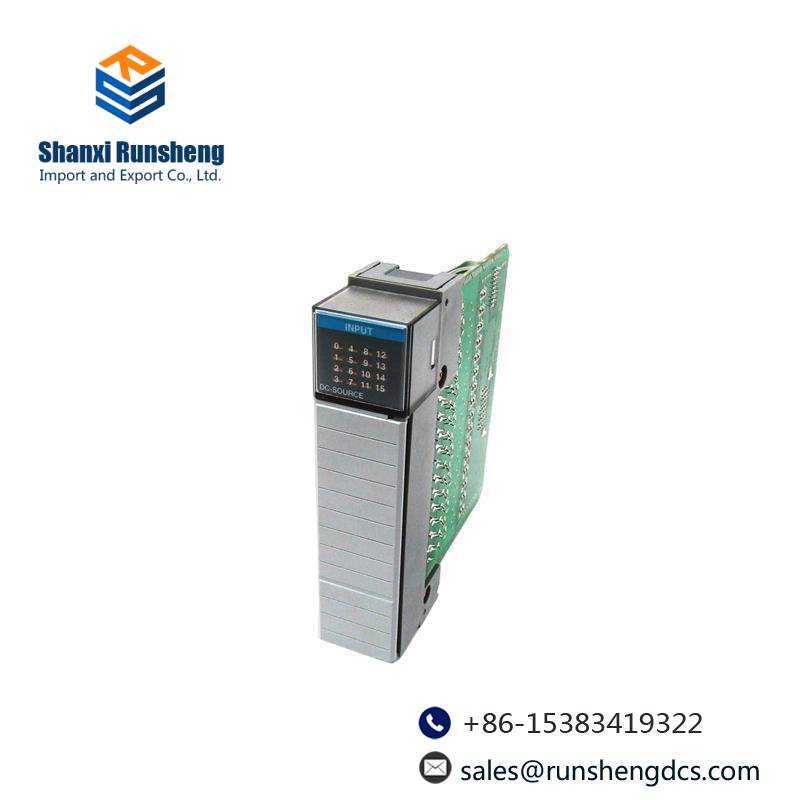

Engineered for precision and reliability, the AB 1746-IV16 Analog Input Module is a cornerstone in modern industrial control systems. This high-precision module boasts 16 input channels capable of accurately measuring voltages within the range of -10VDC to +10VDC, providing unparalleled data integrity.
Featuring a 12-bit resolution and ±1% accuracy, this module ensures exceptional measurement consistency and reliability, even under the most demanding conditions. Its robust design allows for operation within a wide temperature range of -40°C to +70°C, making it suitable for diverse industrial applications.
Equipped with RS-485 communication interface, the module facilitates seamless integration with other system components, enhancing the overall efficiency of the control network. The inclusion of a backplane current consumption feature ensures efficient power usage, contributing to lower operational costs.
The AB 1746-IV16 is not just about functionality; its compact size (130mm x 100mm x 40mm) and lightweight (0.4kg) design make it easy to install and integrate into existing systems without compromising on space or performance.
For those seeking a robust, high-precision input solution in industrial automation, the AB 1746-IV16 Analog Input Module delivers. Its combination of advanced features, durability, and ease of use makes it an ideal choice for enhancing the accuracy and efficiency of industrial control systems.
