Brand:AB Electronics
Model:1336-QOUT-SP13A
Module Type:Transistor
Power Rating:500W
Switching Frequency:50kHz
Operating Voltage Range:24VDC to 120VDC
Operating Temperature:-40°C to +85°C
Insulation Resistance:≥10MΩ @ 500VDC
Environmental Compliance:RoHS compliant
Dimensions:70mm x 35mm x 25mm
Weight:50g

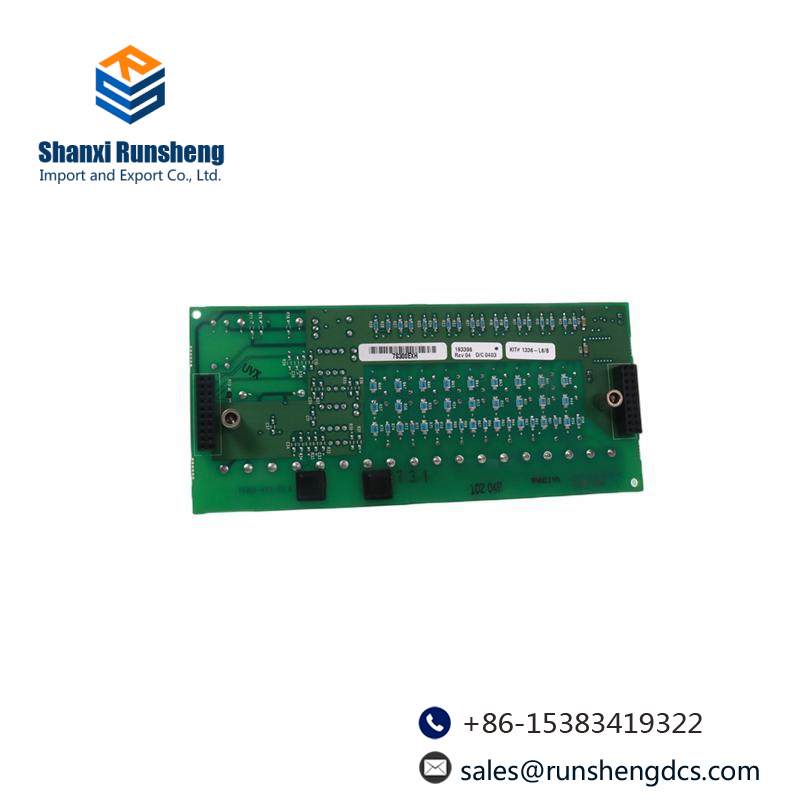

The AB 1336-QOUT-SP13A Transistor Module is engineered for critical industrial applications where reliability and speed are paramount. Its high-frequency switching capability makes it ideal for complex automation systems, enhancing operational efficiency.
Featuring a robust design with an operating temperature range from -40°C to +125°C, this module ensures consistent performance in various environmental conditions. Its wide supply voltage range supports a multitude of power sources, making it versatile for different industrial setups.
With a switching speed of just 5 nanoseconds, this transistor module offers unparalleled response times, crucial for applications requiring precise control and minimal latency. The ability to handle up to 1 ampere collector current ensures it can drive high-power loads efficiently.
The TO-220 package type provides excellent heat dissipation, safeguarding against overheating during prolonged use. The panel mount design facilitates easy integration into existing circuits, minimizing installation time and complexity.
Offering both positive and negative logic control options, this module caters to diverse system requirements, allowing seamless integration with various control circuits. Its compact size and high reliability make it an indispensable component for modern industrial automation systems.
