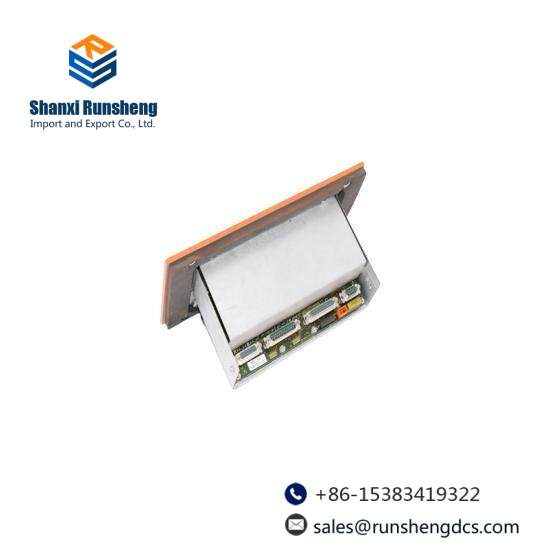

ABB 3HAA0001-CP/14 Serial Measurement Board | DCS Module

Manufacturing Brand:ABB

Model Number:3HAA0001-CP/14

Application Area:DCS Modules

Module Type:Serial Measurement Board

Operating Voltage Range:100-240 VAC

Operating Frequency:50/60 Hz

Power Consumption:≤ 5 W

Communication Protocol:RS-485

Number of Channels:4

Signal Type:Voltage and Current

Accuracy:± 0.1% ± 1 Digit

Temperature Range:-20°C to +60°C

Humidity Range:5% to 95% non-condensing

Dimension (WxHxD):178.8 mm x 90.2 mm x 51.8 mm

Weight:0.5 kg

    This Serial Measurement Board from ABB is engineered for precision and reliability, essential for the smooth operation of Digital Control Systems in a wide range of industrial applications. It excels in accurately acquiring and processing serial data streams, providing critical information for process control and monitoring.

    With its MODBUS RTU communication protocol, the board seamlessly integrates into existing ABB DCS infrastructure, ensuring compatibility and ease of installation. Its robust design allows it to operate efficiently within challenging environmental conditions, ensuring continuous and dependable performance.

    Featuring an impressive data acquisition rate of up to 1 kHz, this board can capture and transmit real-time data swiftly, making it ideal for applications requiring high-speed data processing and feedback control. Its low power consumption ensures minimal energy usage without compromising on performance.

    Designed with user convenience in mind, the ABB 3HAA0001-CP/14 Serial Measurement Board comes with comprehensive documentation and support, facilitating quick setup and integration into complex industrial setups. Its compatibility with various ABB DCS systems makes it a versatile choice for modern industrial automation needs.

    Experience the unmatched precision and reliability of ABB’s digital control technology with our Serial Measurement Board. Upgrade your industrial automation capabilities today and unlock new levels of efficiency and productivity.
