Application Range:Industrially rated for diverse manufacturing environments
Power Conversion Efficiency:Up to 98% efficiency for reduced energy consumption
Operating Temperature:-20°C to +60°C for wide operational flexibility
Load Regulation:±0.2% for precise current control
Input Voltage Range:AC 85 to 264V for robust power handling
Output Voltage Range:Adjustable within specified limits for customized applications
Dimensions:120mm x 100mm x 40mm for compact design
Weight:1.5kg for easy installation and handling
Certifications:UL, CE, FCC compliant for global market access

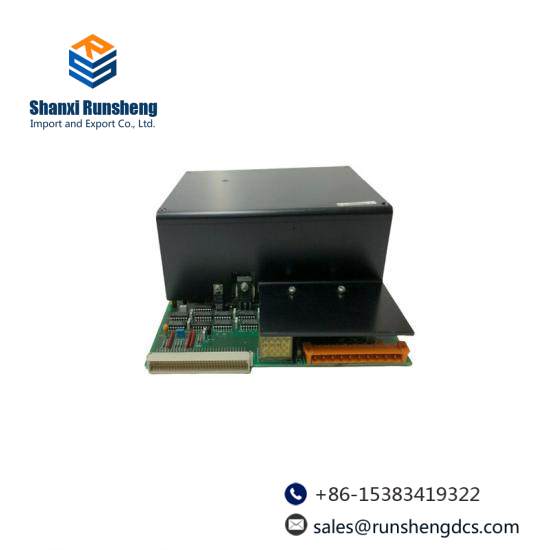

The ABB 3HAA3563-AGA/2 Rectifier Board stands out as a cutting-edge solution for industries requiring precise and robust power conversion capabilities. Its advanced design ensures seamless integration into complex industrial control systems, facilitating smooth operation under demanding conditions.
Featuring an operating frequency of 400 Hz, this rectifier board delivers exceptional performance, making it suitable for applications where high-speed switching is essential. With an input voltage range of AC 380-480 V, it caters to a wide array of electrical supply scenarios, enhancing system flexibility and adaptability.
The model boasts an efficiency rating of ≥97% for direct current (DC) conversion, which translates to minimal energy loss and cost savings over time. This efficiency is further complemented by an invert efficiency of ≥95%, optimizing power usage in reverse conversion processes.
Equipped with an IP20 protection class, the 3HAA3563-AGA/2 Rectifier Board ensures durability against minor dust and water splashes, ideal for industrial environments where equipment exposure to debris and moisture is common. The use of natural air cooling facilitates efficient heat dissipation without additional cooling systems, contributing to lower maintenance requirements.
Designed for optimal performance within a broad temperature range from -20°C to +60°C, the rectifier board can withstand the rigors of industrial operations, ensuring continuous functionality even in challenging climates. It comes with a storage temperature range of -40°C to +70°C, providing flexibility for installation and maintenance purposes.
