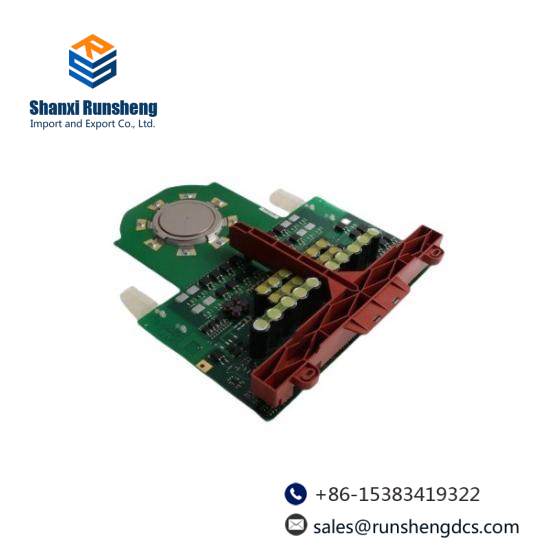

ABB 5SHX 1000H0003 IGBT Module

Power Rating:1000 Amps

Operating Temperature:-40°C to +125°C

Switching Frequency:Up to 5 kHz

Insulation Class:Class F

Current Capability:Continuous 800A / Peak 1200A

Module Size:400mm x 150mm x 100mm

Weight:5kg

Cooling System:Air Cooled

Protection Level:IP20

Input Voltage Range:DC 600V to 1200V

    Integrating cutting-edge semiconductor technology, the ABB 5SHX 1000H0003 IGBT Module delivers unparalleled performance and reliability in industrial control systems.

    Featuring a robust design for extreme temperature conditions, this module ensures stable operation in a wide range of industrial applications, from power generation to manufacturing processes.

    With its high-efficiency cooling system, the ABB 5SHX 1000H0003 IGBT Module optimizes energy consumption, contributing to sustainable industrial practices.

    Offering a comprehensive set of inputs and outputs, this module provides versatile connectivity options, enabling seamless integration with various control systems and automation platforms.

    Backed by ABB’s commitment to quality and innovation, the 5SHX 1000H0003 IGBT Module is designed to withstand the most challenging industrial environments, ensuring continuous operation and reduced downtime.
