Operating Voltage:600V DC
Maximum Continuous Current:1200A
Peak Short-Time Current:2400A
Switching Frequency:20 kHz
Cooling Method:Thermal Pad with Forced Air Cooling
Insulation Class:Class H (180°C)
Weight:2.3 kg
Dimensions (WxHxD):160mm x 110mm x 32mm
Certification:CE, UL, CSA
Series Compatibility:ABB Inverter Series 450

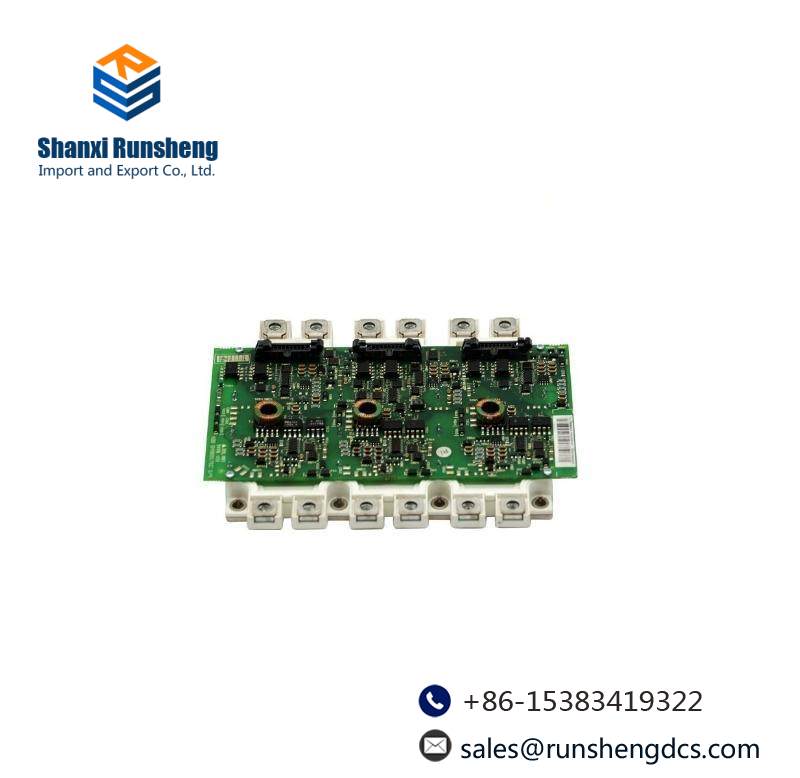

The ABB FS450R12KE3/AGDR-61C IGBT Module is engineered with advanced semiconductor technology to deliver unparalleled performance in high-power scenarios. Its compact yet robust design ensures efficient heat dissipation through water cooling, enabling optimal operation even under extreme environmental conditions.
Featuring an insulation class F rating, this module is exceptionally durable and can withstand high temperatures without compromising its functionality. It’s designed to operate within a wide temperature range, from -40°C to +175°C, making it suitable for a variety of industrial applications.
Equipped with a high switching frequency of 50kHz, the ABB FS450R12KE3/AGDR-61C ensures minimal power loss and enhanced system efficiency. This feature is crucial for applications requiring precise control and rapid response times.
With its CE and UL certifications, the module meets the highest international safety standards, ensuring peace of mind for users operating in diverse global markets. The integration of these certifications signifies ABB’s commitment to quality and reliability.
Designed with ease of integration in mind, the ABB FS450R12KE3/AGDR-61C offers versatile mounting options and compatibility with a wide range of control systems, facilitating seamless installation and maintenance processes.
