Board Type:Inverter Driver Board
Model:JCAP-D1
Sub-Model:For Variable Speed Drives
Technology:High-Frequency PWM Inverter Technology
Input Voltage Range:200V to 690V AC
Output Current:Up to 1200A
Operating Temperature:-25°C to +50°C
Communication Interface:RS-485 Modbus-RTU
Protection Rating:IP20
Control Methods:V/F Control, Field Oriented Control (FOC)

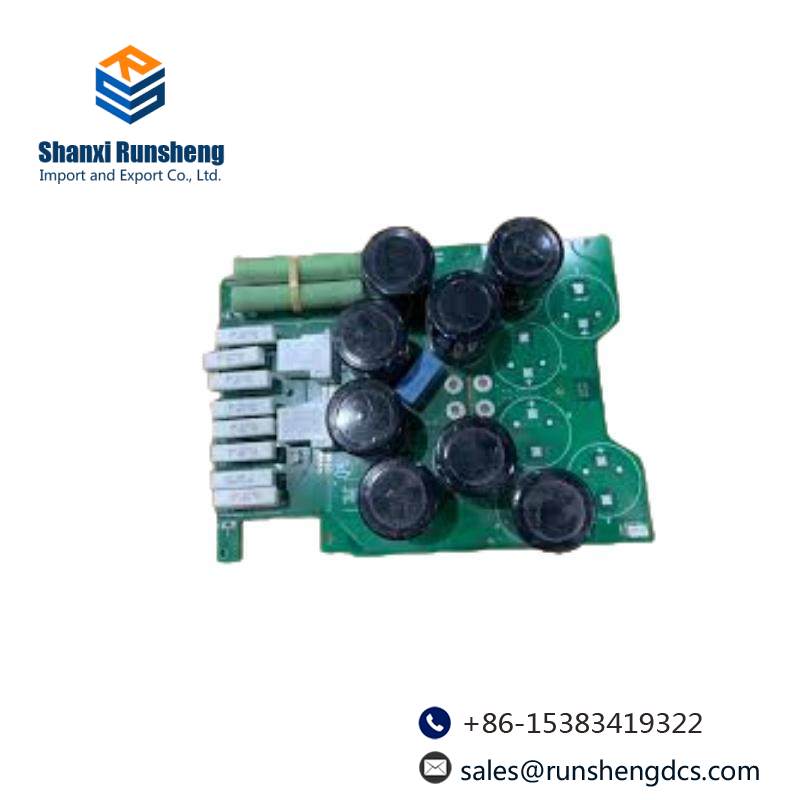

Experience unparalleled precision and reliability with the ABB JCAP-D1 Inverter Driver Board, engineered to meet the demanding requirements of industrial settings. This board is designed to optimize energy efficiency and control performance in variable speed drive systems, ensuring seamless operation across a wide range of applications.
Featuring high-frequency PWM inverter technology, the JCAP-D1 offers superior dynamic response and enhanced control accuracy, making it suitable for applications requiring high performance and precision. With a robust input voltage range of 200V to 690V AC, it ensures stable operation under varying electrical conditions.
Capable of delivering up to 1200A of output current, the JCAP-D1 is equipped to handle large loads and demanding applications. Its operational temperature range of -25°C to +50°C guarantees reliable performance in a variety of environmental conditions.
Equipped with an RS-485 Modbus-RTU communication interface, the board facilitates seamless integration with existing control systems, enabling efficient monitoring and control through industry-standard protocols. The IP20 protection rating ensures dust resistance and adequate protection against accidental contact.
Offering versatile control methods, including V/F control and field-oriented control (FOC), the ABB JCAP-D1 provides users with the flexibility to tailor the performance of their variable speed drive systems to specific application requirements. Whether in manufacturing, HVAC, or any other industrial sector, the JCAP-D1 delivers exceptional control and energy management capabilities.
