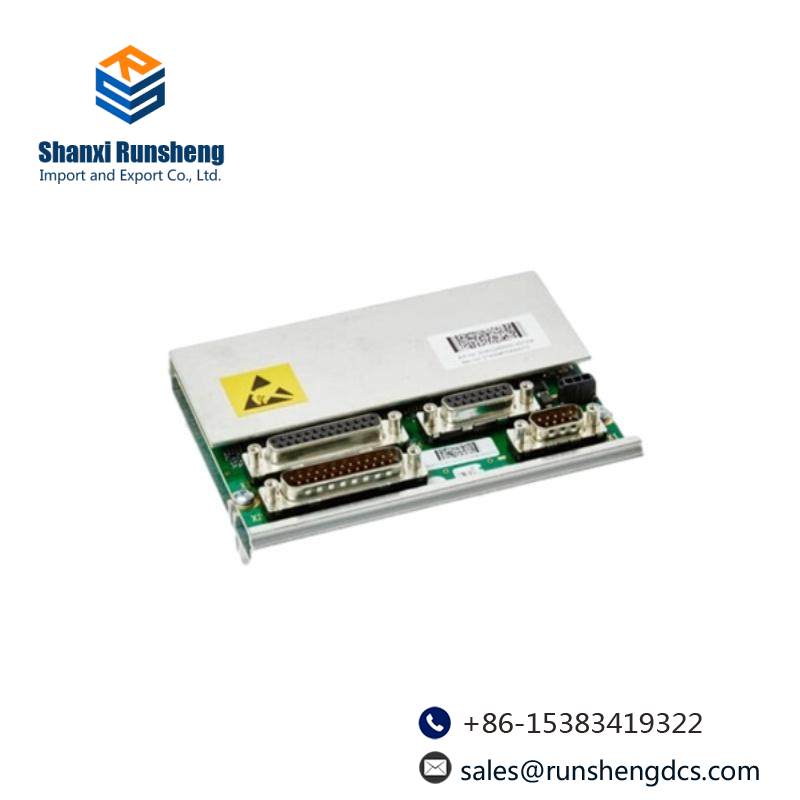

ABB SMB3HAC042285-001: High Precision Serial Measurement Board for Industrial Control Systems

Model:SMB3HAC042285-001

Type:Serial Measurement Board

Manufacturer:ABB

Accuracy:+/- 0.02% of full scale

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Supply Voltage:DC 12V ±10%

Input Range:0 to 10V DC / 4 to 20mA

Communication Interface:RS-485

Dimensions:120mm x 100mm x 35mm

Weight:0.5kg

Connectors:M12 x 1 x 3-pin

    The ABB SMB3HAC042285-001 is meticulously engineered for precision measurement tasks in industrial automation systems. Its compact design ensures it can fit seamlessly into a variety of industrial environments, delivering exceptional performance under extreme conditions.

    Equipped with a robust RS-485 communication interface, this board facilitates reliable data exchange between devices. It supports multiple channels for parallel data acquisition, enhancing efficiency and flexibility in industrial settings.

    Featuring a wide operating temperature range from -20°C to +70°C, the SMB3HAC042285-001 is built to withstand harsh environments, ensuring continuous operation and accuracy even in challenging conditions.

    With an input voltage range of 12 to 36 VDC, the board is compatible with a broad spectrum of power sources, making it versatile for various industrial applications. Its 5 mA per channel output current capacity allows for precise control and monitoring of industrial processes.

    Capable of acquiring data at a speed of 10 kHz per channel, the SMB3HAC042285-001 ensures real-time monitoring and control, enabling quick response times and enhanced operational efficiency in industrial automation.
