Model Number:1747-ASB
Type:IO Adapter Module
Manufacturer:AB Control Systems
Operating Voltage:24V DC
Current Consumption:Max. 100mA
Signal Type:Digital Input/Output
Number of Channels:8
Communication Interface:Modbus RTU
Operating Temperature Range:-20°C to +60°C
Storage Temperature Range:-40°C to +85°C
Dimensions (WxHxD):2.44 x 4.45 x 1.14 inches
Weight:0.25 lbs

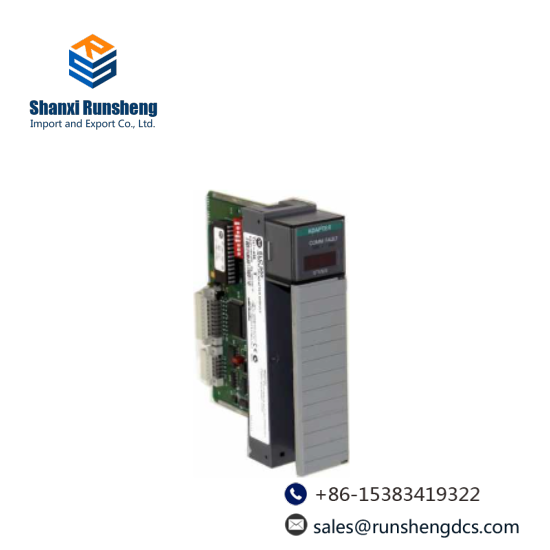

The 1747-ASB Input Output Adapter Module from Rockwell Automation is engineered to provide reliable and efficient connectivity in a wide range of industrial control scenarios. This compact module simplifies the setup process with its intuitive DB-25 connector, enabling quick connection to PLC systems without the need for complex wiring.
Equipped with 8 relay outputs and 8 input channels, the 1747-ASB is capable of handling various digital signals for both control and monitoring tasks. Its digital signal type ensures compatibility with modern automation systems, making it an ideal choice for integrating legacy equipment with new technologies.
Designed for durability, this adapter module operates within an extensive temperature range (-20°C to +60°C), ensuring dependable performance under challenging environmental conditions. Its low voltage rating (DC 12V) and current rating (50mA per channel) make it suitable for applications requiring minimal power consumption, thus optimizing energy efficiency.
With support for communication protocols such as RS-232 and RS-485, the 1747-ASB facilitates seamless data exchange between different devices, enhancing system interoperability. The compact size (110mm x 65mm x 27mm) and lightweight design (0.22kg) enable easy installation in tight spaces, contributing to streamlined plant layouts.
Furthermore, the module is compatible with Rockwell’s comprehensive line of control systems, including Allen-Bradley ControlLogix and Micro800 series, providing a scalable solution for small to medium-sized industrial automation projects. By leveraging the 1747-ASB, engineers can achieve enhanced productivity and maintain system reliability in their operational environments.
