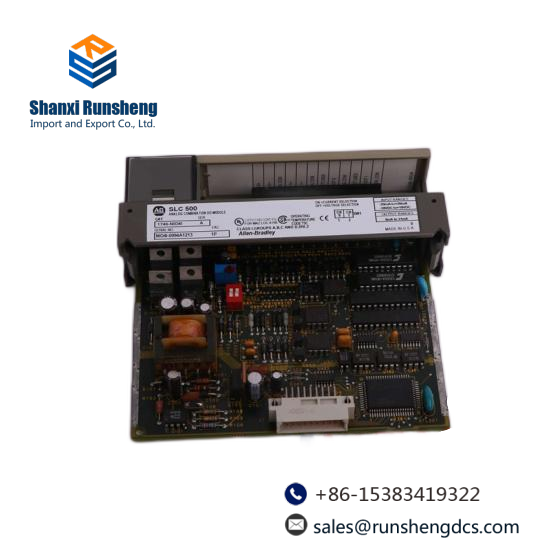

Model Type:Industrial Control Module
Manufacturer:Allen-Bradley
Model Number:1746-NI4
Channels:4
Common Mode Voltage Range:-20 To 20 V
Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)
Input Range:-10 To 10 VDC – 1 LSB
Absolute Input Current:-30 To 30 MA (Maximum)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Current Rating:Backplane Current Draw: 35 MA At 5 V, 85 MA At 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Engineered for precision, the Allen-Bradley 1746-NI14 is a robust solution for high-resolution analog signal acquisition, supporting a wide range of industrial applications.
Featuring 14 channels for simultaneous monitoring, this module ensures accurate data collection even in harsh environments, making it ideal for factory floors and process control systems.
With its advanced isolation capabilities, the 1746-NI14 ensures reliable operation by preventing interference from external sources, guaranteeing consistent performance.
Designed for easy integration, this module is compatible with Allen-Bradley’s comprehensive automation portfolio, facilitating seamless setup and management within existing systems.
Comprehensive documentation and support are provided, ensuring users can quickly understand and implement the 1746-NI14, maximizing its efficiency and reducing downtime.
