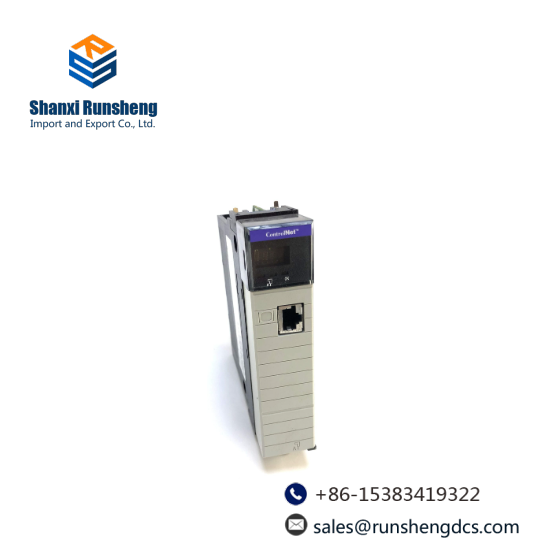

Allen-Bradley 1756-CN2/C Capacity Bridge Module, Industrial Automation Innovation

Model Type:Communication Bridge Module

Manufacturer:Allen-Bradley

Model Number:1756-CN2/C

Communication Speed:Up to 100 Mbps

Enclosure Type:Open Type

Power Supply:3 mA at 24 VDC

Temperature Rating:0°C to 60°C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5% to 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Connection Cables:802.3 compliant shielded or unshielded twisted pair

    The AB 1756-CN2/C Capacity ControlNet Bridge Module is engineered for high performance in demanding industrial environments, offering reliable and robust communication capabilities.

    With its open type enclosure, this module ensures optimal heat dissipation, ensuring longevity and consistent operation under varying environmental conditions.

    Featuring an Ethernet connection, it seamlessly integrates with ControlLogix PLCs, providing a secure and efficient data transfer pathway for real-time control applications.

    This module is capable of handling up to 256 devices on a single ControlNet network, enhancing system scalability and flexibility.

    Designed with advanced RFI suppression technology, the 1756-CN2/C ensures minimal interference, guaranteeing stable communication even in noisy environments.

    Its compact size and rugged design make it ideal for both new installations and retrofit scenarios, supporting seamless integration with existing systems.
