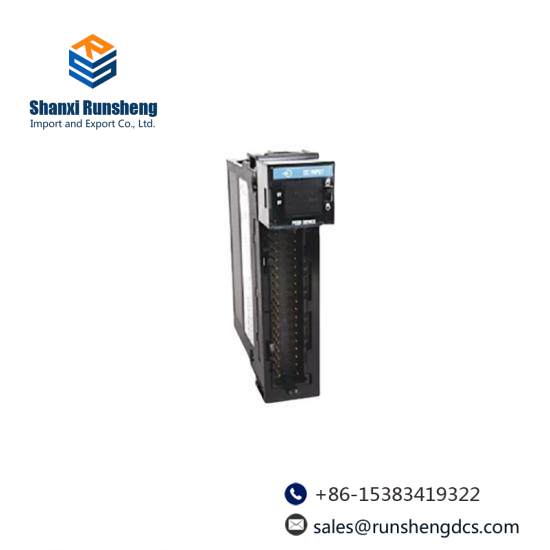

Allen Bradley 1756-IB16IF ControlLogix 16 Point Digital Input Module: Reliable Automation Solution for Industrial Control Systems

Model Type:High Capacity IP Module

Manufacturer:Allen Bradley

Input Type:Digital

Number of Inputs:16

Communication Cable:16-Point

Voltage Category:24V DC

Operating Voltage Range:20.4…26.4V DC

Current per Point:0.5 A @ 60 °C (140 °F), 1.0 A @ 30 °C (86 °F)

Power:24 Volts DC

Bus Current Draw, Max:200 mA

Mounting:DIN rail or panel mount

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity, 0 – 60 DEG C

Vibration:2 G

Shock:30 G

Interface:Ethernet

USB Port:Available

Power Dissipation:5.1 W

Isolation:30 V Continuous

Communication Protocol:Ethernet/IP Bridge

Enclosure:Open Type

Temperature Rating:-40 to +85 DEG C

    The Allen Bradley 1756-IB16IF ControlLogix 16 Point Digital Input Module is a cornerstone in the world of industrial automation, offering unmatched performance and reliability for critical applications.

    Featuring 16 discrete inputs, this module is ideal for monitoring various operational conditions, ensuring precise control over machinery and processes.

    Built for harsh industrial environments, it withstands extreme temperatures and humidity without compromising its operational integrity.

    With a robust power supply and efficient current draw, the module ensures stable operation even under heavy load scenarios, maximizing efficiency and minimizing downtime.

    The inclusion of an open-type enclosure and Ethernet/IP Bridge connection ensures seamless integration with existing network infrastructures, facilitating easy setup and management across diverse automation systems.

    Equipped with a USB port for enhanced functionality, this module supports data transfer and firmware updates, streamlining maintenance and upgrade processes.
