Product Type:Terminal Base Unit
Model Number:1794-TB32
Designation:Industrial PLC Module
Terminal Count:32 I/O Terminals
Common Terminals:8
Voltage Terminals:8
Input Voltage Range:31.2V DC/AC, 50/60Hz, 10A
Power Supply Voltage Range:31.2V DC/AC, 50/60Hz, 10A
Voltage Rating:24V DC/AC, 24V DC/AC
Isolation Voltage:125V
Terminal Screw Torque:0.56-0.79 Nm
Mounting Style:DIN Mount
Enclosure Type:Open Style
Environmental Rating:IP20

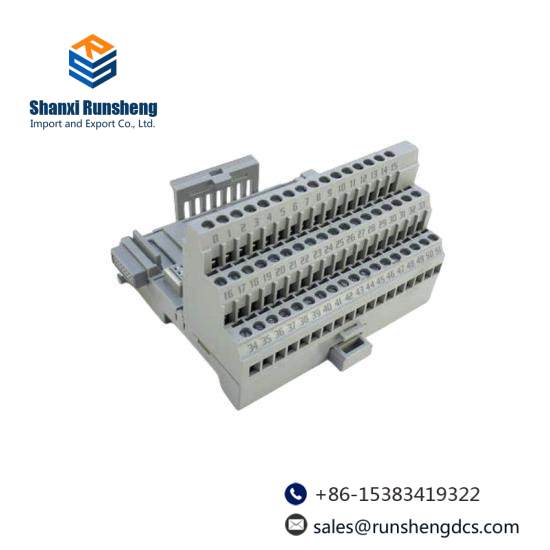

The Rockwell Automation 1794-TB32 Terminal Base is engineered to offer seamless integration within the comprehensive Rockwell Automation Flex I/O system. This terminal base boasts 32 I/O terminals, providing ample connectivity options for various input and output requirements in industrial automation environments.
Equipped with 8 common terminals and 8 + voltage terminals, it ensures flexibility in managing different signal types and power levels, making it suitable for a wide range of applications. The DIN mount design facilitates easy installation and integration into existing systems.
With its screw-clamp connector type and open connection style, the 1794-TB32 simplifies the wiring process, ensuring secure connections without compromising on the speed and efficiency of setup.
The terminal base is designed with an IP20 environmental protection class, offering basic dust protection, ideal for most industrial settings where moderate dust levels are expected. This ensures reliable operation even under varying environmental conditions.
Furthermore, the 1794-TB32’s compatibility with Flex I/O systems guarantees seamless interoperability with other Rockwell Automation components, enhancing the overall automation solution and enabling a modular approach to system expansion and customization.
