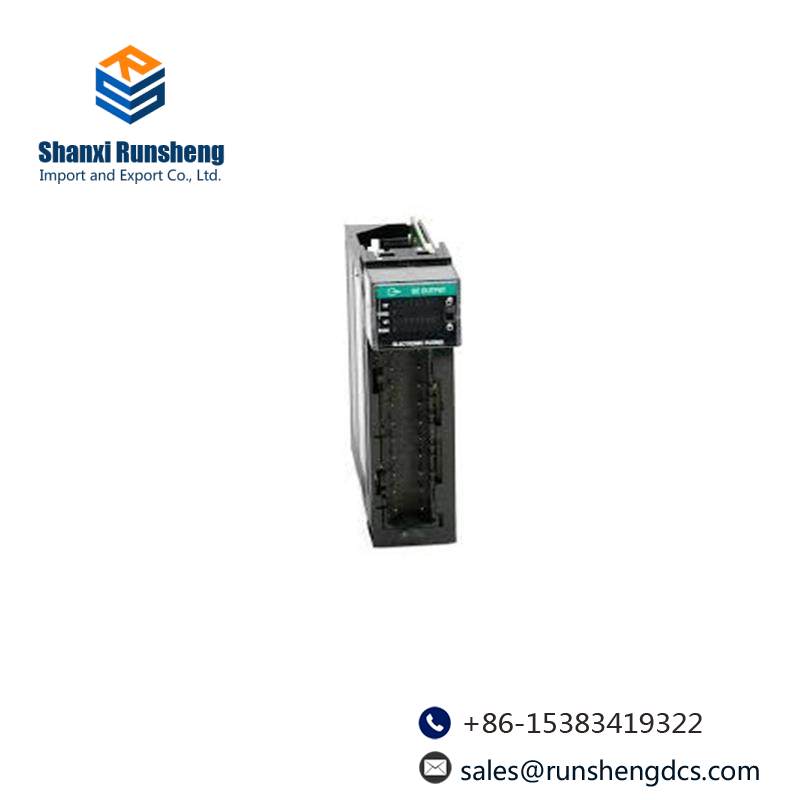

Allen Bradley AB 1756-OB16E/A ControlLogix 16 Point Digital Output Module

Model Type:High Capacity IP Module

Manufacturer:Allen Bradley

Product ID:1756-OB16E/A

ControlLogix Product Type:Digital DC output

Number of Outputs:16

Output Voltage Range:10-31.2 VDC

Nominal Output Voltage:24 VDC

Electronically Fused Voltage:12-24 Volts DC

Mounting:Chassis

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP Bridge

Enclosure Type:Open Type

Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet

USB Port:Present

    Introducing the AB ControlLogix 1756-OB16E/A, a cutting-edge digital output module tailored for advanced industrial automation systems. This module boasts a robust design that seamlessly integrates into ControlLogix platforms, ensuring optimal performance in demanding environments.

    With its 16-point digital output capability, the 1756-OB16E/A empowers engineers to manage complex operations efficiently. The electronically fused voltage feature ensures safety and reliability, reducing the risk of short circuits and system malfunctions.

    Featuring a high-speed Ethernet/IP communication protocol, this module facilitates seamless data exchange between different components of an industrial system. Its open-type enclosure design allows for easy installation and maintenance without compromising on environmental protection.

    Equipped with a comprehensive set of connection cables compliant with 802.3 standards, the 1756-OB16E/A ensures compatibility across various industrial networks. The power dissipation rating and continuous isolation feature guarantee stable operation even under extreme conditions.

    Designed for efficiency and flexibility, the AB ControlLogix 1756-OB16E/A is compatible with Allen-Bradley’s extensive ecosystem, providing users with unparalleled integration capabilities. Whether you’re upgrading existing systems or designing new ones, this module is your go-to choice for reliable digital output control.
