Model:2094-AC09-M02
Brand:Allen-Bradley
Series:Kinetix 6000
Weight:5.1 pounds (2.31 kilograms)
Power Capacity:12 kW
Efficiency:95%
Input Voltage:200 to 230 Volt AC
Output Voltage:325 Volt DC nominal bus
Converter Capacity:6 kW
Frequency Range:47 to 63 Hertz
Line Loss Ride Through:20 milliseconds
Short-Circuit Current Rating:200,000 Amps symmetrical
Data Retention:20 years
Interface:SERCOS, EtherNet/IP
Safety Feature:ISO 13849-1 PLe/SIL3-certified Safe-Torque Off
Mounting Type:Rail mount
Operating Temperature:0 to 50 degrees Celsius
Power Dissipation:14 to 46 Watts @ various utilization percentages

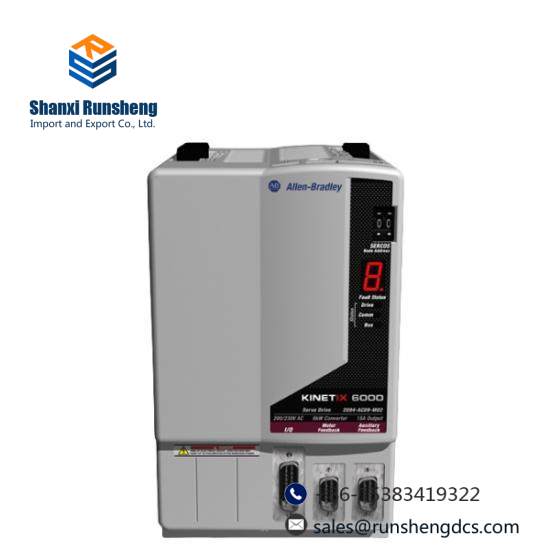

The Allen-Bradley 2094-AC09-M02 Integrated Axis Module is engineered for high-performance applications requiring precise control and enhanced safety features. This module, part of the Kinetix 6000 product family, seamlessly integrates with a wide range of industrial machinery, ensuring efficient operation and reliability.
Equipped with an integrated Safe-Torque Off functionality, this module adheres to stringent safety standards, providing peace of mind in critical applications. Its high efficiency, reaching up to 95%, ensures optimal energy utilization, contributing to cost-effective operations.
Featuring a robust design with a weight of 5.1 pounds, the 2094-AC09-M02 is suitable for various industrial environments. With a capacity of 12 kW, it is versatile enough to handle a broad spectrum of power requirements, making it an ideal choice for both new installations and system upgrades.
Designed with compatibility in mind, the module supports direct connection to ControlLogix controllers equipped with SERCOS interface modules. This connectivity enhances the ease of integration and streamlines control system management, optimizing productivity and minimizing downtime.
Offering a 325 Volt DC nominal bus output voltage and a frequency range of 47 to 63 Hertz, the 2094-AC09-M02 provides precise control over motor speed and torque, crucial for achieving accurate motion profiles in demanding applications. Its high short-circuit current rating ensures reliable performance even under extreme conditions.
With a memory retention of 20 years and support for connection to a host PC or PLC controller, the module ensures long-term operational integrity and facilitates easy configuration and monitoring. The included seven-segment display conveniently indicates operational status, events, and fault codes, enhancing troubleshooting efficiency.
