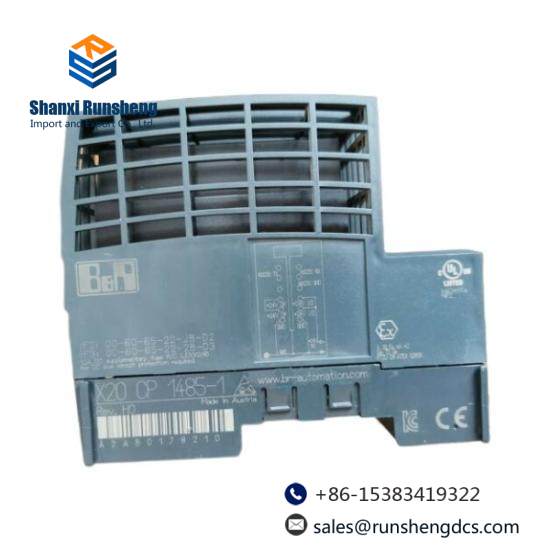

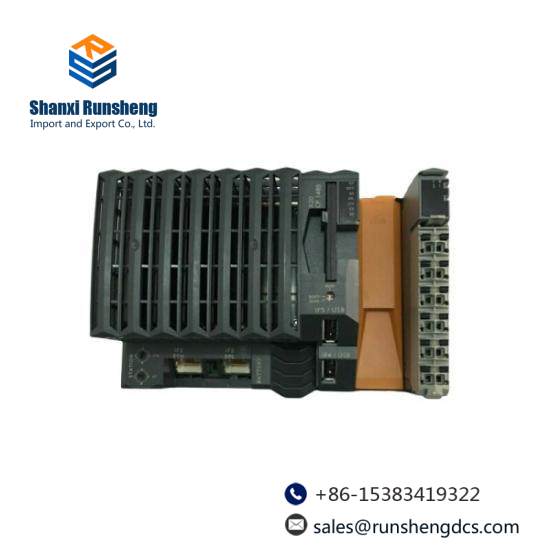

B&R X20CP1485 – High-Performance Modular PLC Controller

Intel x86-based CPU:100 MHz-compatible

Integrated I/O Processor:Onboard Ethernet, POWERLINK, USB

Expansion Slot:1 slot for modular interface

CompactFlash Memory:Removable

Fanless Design:Passive cooling technology

Interfaces:1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2), 2x USB, 1x X2X Link

System Module:CPU

Status Indicators:CPU function, overtemperature, Ethernet, POWERLINK, CompactFlash, battery

Power Consumption:Internal I/O: 0.6 W

Input Voltage:24 VDC -15% / +20%

Input Current:Max. 2.2 A

Processor Type:x86 100 comp.

RAM:32 MB SDRAM

Dimensions:Compact design

Weight:Lightweight for easy integration

    The B&R X20CP1485 PLC controller is equipped with an Intel x86-based, 100 MHz-compatible CPU, providing robust performance for complex industrial control systems.

    Integrated I/O processor allows for efficient handling of digital inputs and outputs, ensuring precise control over machinery and processes.

    Equipped with onboard Ethernet, POWERLINK, and USB interfaces, the controller facilitates seamless integration with a wide range of industrial equipment and software.

    Compact design with fanless cooling ensures quiet operation in confined spaces, ideal for diverse industrial environments.

    Supports multiple programming languages, including B&R’s proprietary Automation Studio, enabling flexible customization and optimization of control applications.

    Reliable and durable construction withstands harsh industrial conditions, ensuring consistent performance over long periods.
