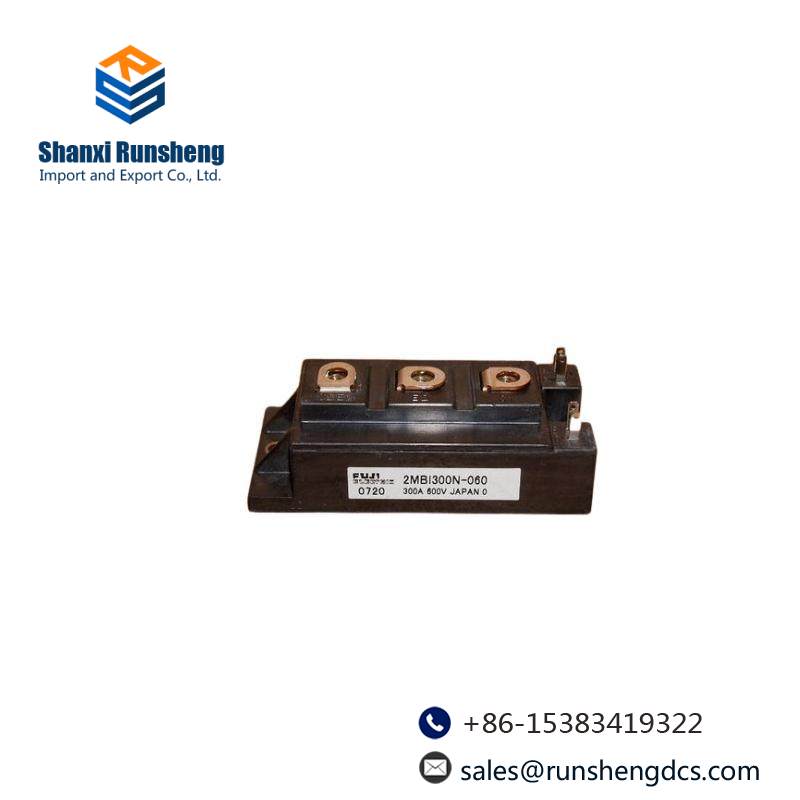

FUJIFILM 2MBI300N-060 High-Voltage IGBT Power Transistor Modules

Module Type:IGBT Power Transistor

Model Number:2MBI300N-060

Maximum Continuous Current:300A

Maximum Continuous Voltage:600V

Operating Frequency:20kHz

Cooling Method:Air Cooled

Insulation Class:Class 1

Temperature Range:-40°C to +125°C

Package Size:40x40x30mm

Net Weight:0.5kg

    These IGBT modules from FUJIFILM are meticulously engineered for demanding industrial applications, featuring superior heat dissipation capabilities and enhanced reliability under high-power conditions.

    Equipped with advanced semiconductor technology, they deliver exceptional switching performance and energy efficiency, making them ideal for use in power electronics, motor drives, and other heavy-duty industrial systems.

    The robust design includes a TO-247 package with a thermal pad for easy integration and improved thermal management, ensuring stable operation even in harsh environments.

    With a wide operating temperature range from -40°C to 150°C, these modules can withstand extreme conditions without compromising on performance, making them suitable for a broad spectrum of industrial applications.

    Featuring an insulation resistance of at least 1000 MΩ, they provide a high level of electrical isolation, enhancing system safety and reducing the risk of electrical faults.
