Size:Square board
Material:PCB (Printed Circuit Board)
Power Supply:Flexible voltage range
Dimensions:Customizable based on application
Terminal Strip:Single three-position
Connectors:Two male vertical pin
Jumper Switches:13
Potentiometers:7
Integrated Circuits:9, including logic and high-performance analog line drivers
Components:Diodes, resistors, capacitors of various materials
Position Switch:Seven-position along the top edge

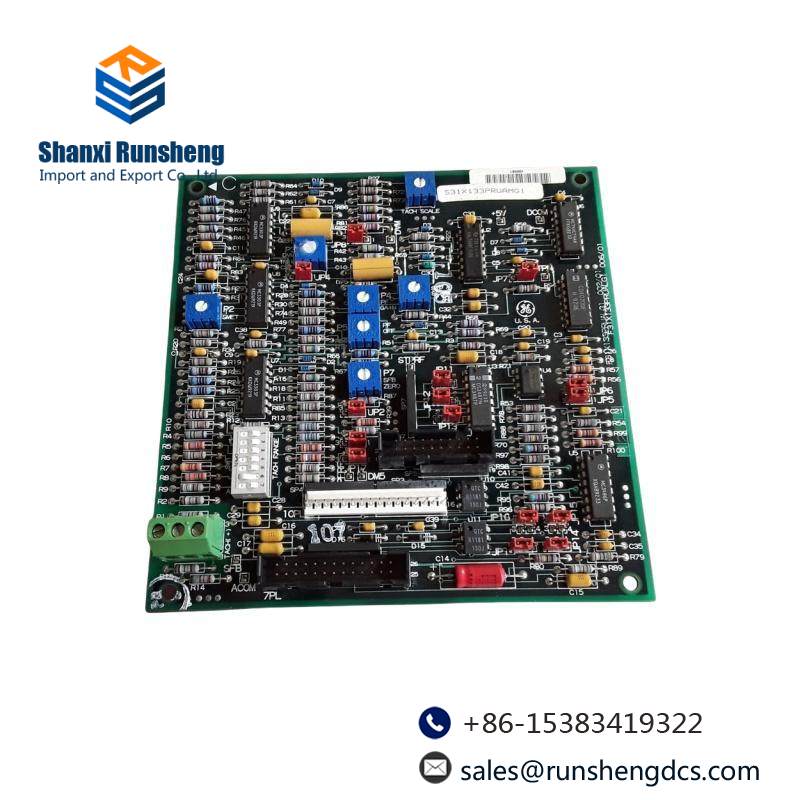

The GE 531X133PRUAMG1 Interface Board is engineered for precision and reliability in industrial automation environments. Its compact yet robust design supports multiple mounting options, making it versatile for various applications.
Key features include a 16-pin vertical header and two male vertical pin connectors, facilitating straightforward integration with control systems. The inclusion of a three-position terminal strip ensures efficient signal management.
With thirteen jumper switches and seven potentiometers, users can easily customize the board’s performance to suit specific operational needs. The presence of nine integrated circuits guarantees superior signal processing capabilities, ensuring accuracy and speed in data transmission.
Crafted with a blend of diodes, metal film resistors, and capacitors of diverse materials—such as electrolytic, ceramic, and polyester vinyl—the board is built to withstand harsh industrial conditions. Its wide operating temperature range (-40°C to 85°C) ensures reliable operation across different environments.
For optimal performance, it’s recommended to use DC power supplies compatible with the board’s specifications. Installation guidelines can be found in the detailed user manual provided with the product, ensuring a smooth setup process for technicians and engineers.
