Module Type:Analog Conversion Board
Application:Drive Systems
Board Designation:DS3800HAIA
Series:Mark IV DS3800
Connector Type:Modular Connector
Retention Features:Retention Levers
Pin Count:34
Components:2 Trimmer Resistors, 8 Jumpers, 1 EEPROM Socket
Converter Type:Embedded Analog/Digital Converter
Signal Compatibility:Analog Signals

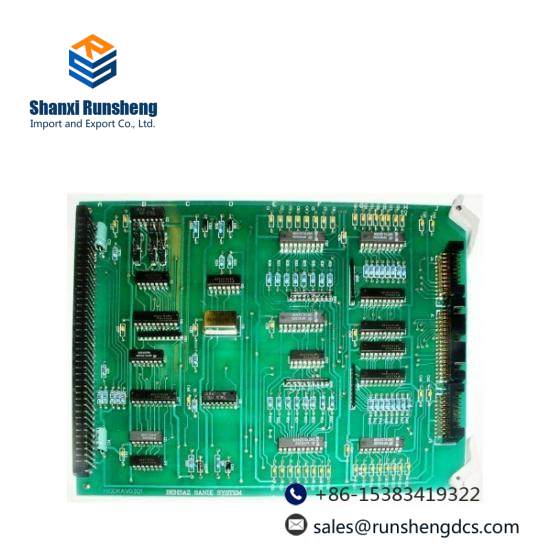

The GE DS3800HAIA Analog Conversion Board is engineered for swift integration into your drive system, ensuring a seamless transition from analog signals to digital formats for enhanced system performance.
This board boasts a modular connector design on one end, coupled with retention levers on the other, which ensures stable placement and prevents accidental disconnection during operation.
Populated with two 34-pin connectors between the retention levers, the DS3800HAIA provides ample connection points for various wiring configurations, supporting diverse industrial control applications.
Equipped with two trimmer resistors and eight jumpers, the board offers precise tuning capabilities, enabling users to adjust signal levels according to specific operational requirements.
A dedicated socket for an EEPROM module facilitates storage of critical system data, ensuring robust performance and quick recovery in case of power outages or system resets.
