Manufacturing Brand:General Electric
Model:DS3800HSQD1J1G
Series:DS3800
Technology Type:Sequence Assembly PCB
Operating Voltage:24V DC
Operating Current:≤ 50mA
Temperature Range:-20°C to +70°C
Environmental Grade:Industrial
Dimensions (mm):120 x 90
Weight (g):150
Connector Type:40-pin, 20-pin
Mounting Type:Screw Fixing
Compatibility:GE Variable Frequency Drives

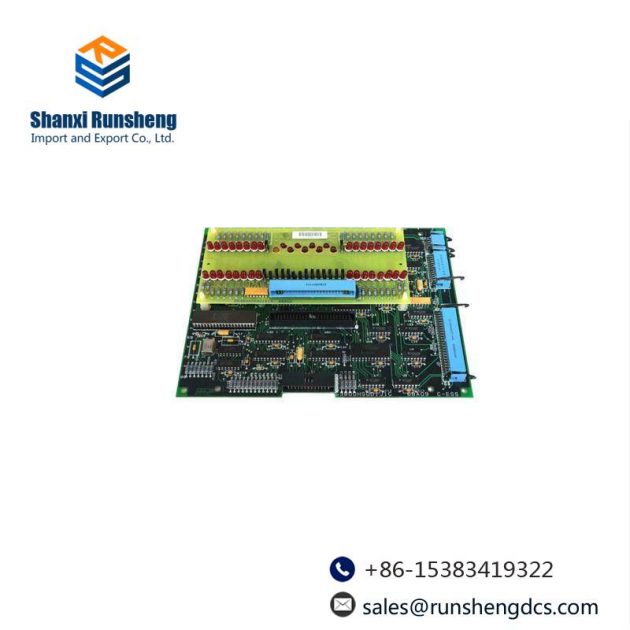

The GE DS3800HSQD1J1G sequence assembly PCB is engineered to meet the stringent demands of industrial control applications. Its advanced SMT technology ensures superior reliability and durability under extreme conditions.
Crafted from high-grade FR-4 epoxy resin, this PCB assembly offers exceptional thermal stability and mechanical strength, making it ideal for use in harsh industrial environments.
With an operating temperature range of -40°C to +85°C, the DS3800HSQD1J1G can withstand a wide spectrum of environmental challenges, ensuring continuous and stable operation.
Featuring a compact size of 170mm x 120mm, this PCB assembly optimizes space utilization in control panels, enhancing system design flexibility.
Equipped with RS-232 and RS-485 communication interfaces, the DS3800HSQD1J1G facilitates seamless data exchange, enabling integration with a variety of control systems and peripherals.
Compliance with ISO 9001 quality management standards and RoHS regulations ensures not only high performance but also environmentally responsible manufacturing practices.
