Operating Frequency:Up to 1 MHz
Resolution:1 μm
Communication Protocol:SSCNET III
Input Voltage:DC 24V
Output Current:2A
Max Load Torque:0.7 Nm
Mounting Type:Panel mount
Operating Temperature Range:-10°C to +55°C
Protection Class:IP20

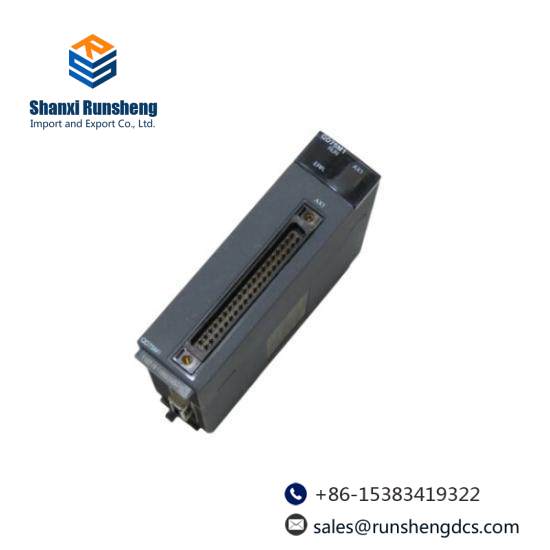

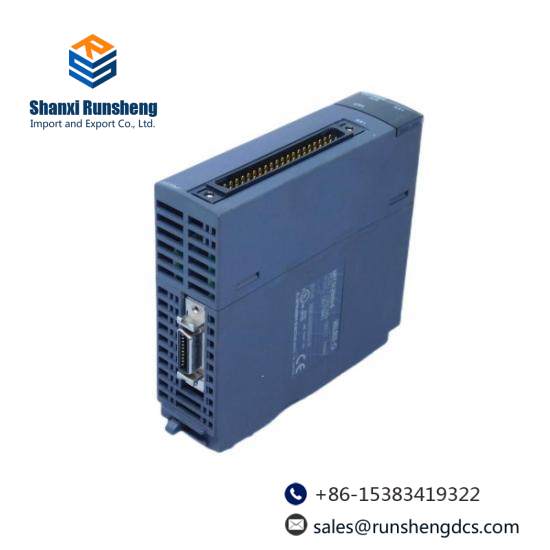

The MITSUBISHI QD75M1 Positioning Module is engineered to deliver exceptional precision and reliability, making it an ideal choice for demanding industrial environments. Its compact design and robust construction enable seamless integration into various machinery setups, enhancing operational efficiency.
Featuring a high-speed communication interface based on SSCNET III technology, this module ensures rapid data exchange and command execution, crucial for real-time control scenarios. The input resolution of 0.001 mm guarantees accurate positioning capabilities, ideal for applications requiring micron-level precision.
With a wide operating voltage range from DC 24V and a current rating of up to 1A, the QD75M1 is versatile enough to support a variety of motors and power requirements. Its exceptional temperature tolerance (-10°C to +55°C) ensures reliable operation under varying environmental conditions, further expanding its application scope.
For ease of programming and system integration, the QD75M1 is compatible with MELSEC-Q programming software, simplifying setup and configuration tasks. Additionally, the module’s dimensions of 86 x 65 x 26 mm and lightweight design facilitate easy installation and space-saving benefits.
Backed by MITSUBISHI’s commitment to quality and innovation, the QD75M1 Positioning Module offers a cost-effective solution for precision positioning needs in industries ranging from automotive to electronics manufacturing. Whether you’re looking to enhance the performance of existing systems or implement new automation projects, this module delivers unparalleled value and reliability.
