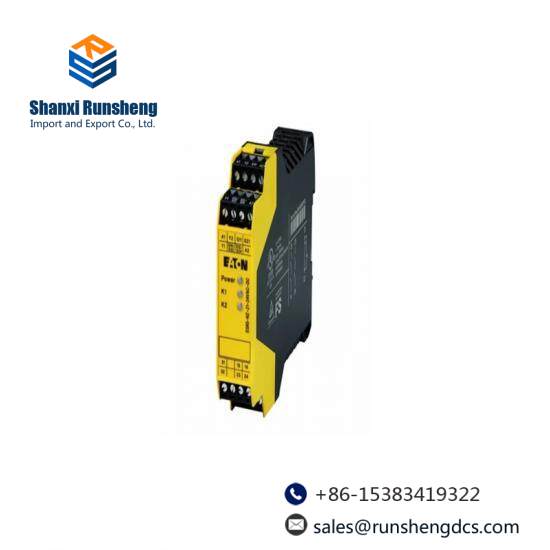

MOELLER ESR5-NO-21-24VAC-DC Safety Relay

Operating Voltage:24VAC/DC

Relay Type:No (Normally Open)

Current Rating:5A @ 24VDC

Contact Configuration:Single Pole Double Throw (SPDT)

Operating Range:0 to 100%

Protection Class:IP20

Operating Temperature:-20°C to +60°C

Material:Dielectric Strength: 1000VAC

Mounting:Panel Mount

    The MOELLER ESR5-NO-21-24VAC-DC safety relay is engineered for high reliability and long-lasting performance in harsh industrial environments. Its compact design makes it suitable for space-constrained applications without compromising on functionality.

    Featuring a robust silver-plated copper alloy contact system, this relay ensures low contact resistance and minimal wear, even under frequent switching conditions. This results in reduced maintenance requirements and extended operational life.

    With its ability to handle up to 1 A at 250 V AC or 10 A at 24 V DC, the ESR5 is capable of managing a wide range of loads. Its SPNO configuration offers precise control and isolation, making it ideal for protecting sensitive circuits from unwanted disturbances.

    Designed with an operating frequency of up to 100 Hz, the relay is well-suited for modern control systems that demand rapid response times. This feature ensures that any potential issues are addressed promptly, enhancing overall system stability and safety.

    Equipped with an IP20 protection class, the MOELLER ESR5 is protected against solid objects greater than 1 mm and splashes of water from any direction. This makes it suitable for use in a variety of industrial settings where environmental conditions may vary.
