Manufacturer:SIEMENS
Model:CPU 317-2DP
Model Number:6ES7317-2AJ10-0AB0
Processing Speed:Up to 12 Mbit/s
Work Memory:1 MB
Interface Types:MPI/DP, Ethernet PROFINET
Switch Capacity:2-port
Required Memory Card:Micro
Dimensions:13,20 x 15,40 x 8,90 cm
Weight:0.519 kg
Power Supply:230V 1 phase / 460V 3 phase
Frequency Range:0.1~600 Hz
Input Voltage:208;240 Volts AC
Amperage (CT):4.2 Amps
Max Frequency:600 Hz
EMI Filter:Built-in (for 230V 1 phase / 460V 3 phase)
Fieldbus Compatibility:Optional modules (DeviceNet, Profibus, LonWorks, CANopen)

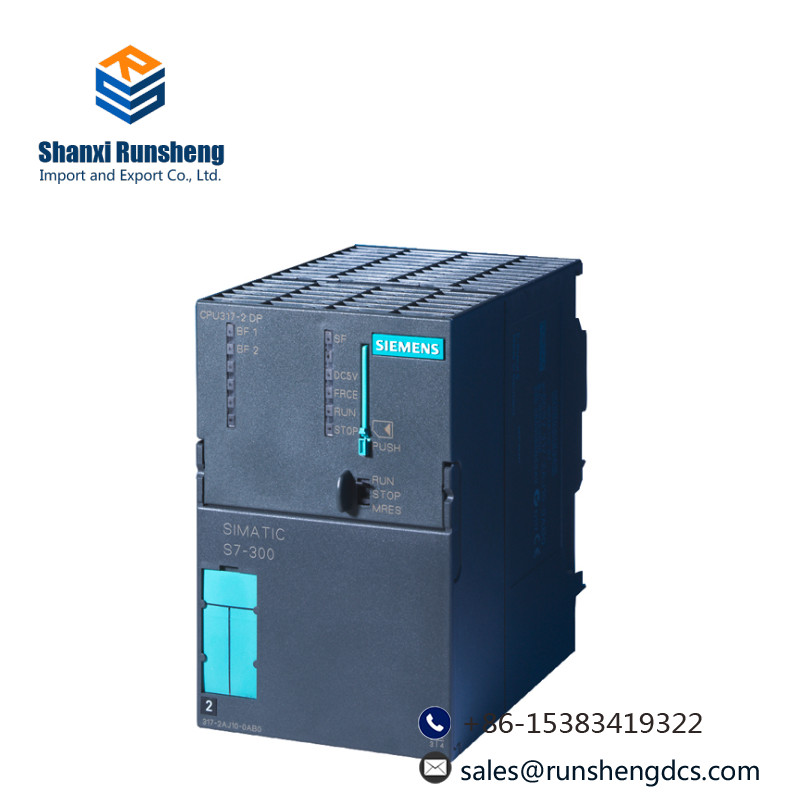

The SIEMENS 6ES7317-2AJ10-0AB0 CPU317-2DP Processor Module is designed for efficiency and reliability in industrial automation environments, featuring an integrated 1 MB work memory that ensures swift processing capabilities. Its dual interface setup—MPI/DP 12 Mbit/s and Ethernet PROFINET with a 2-port switch—facilitates seamless communication within diverse control networks, enhancing system flexibility and connectivity.
This processor module boasts a modular and compact design, making it an ideal fit for space-constrained applications without compromising on performance. It requires a micro memory card for optimal operation, ensuring the storage of critical data and programs.
Equipped with an embedded EMI filter for both 230V 1 phase and 460V 3 phase configurations, the module safeguards against electromagnetic interference, ensuring uninterrupted operation. An RFI-switch for mains adds an extra layer of protection, safeguarding against power fluctuations.
The SIMATIC S7-300 CPU 317-2 DP comes with a built-in PLC function, providing robust control capabilities for various industrial processes. The inclusion of optional Fieldbus Modules such as DeviceNet, Profibus, LonWorks, and CANopen further expands its compatibility with a wide range of fieldbus standards, enhancing integration potential.
With a nominal input voltage of 208;240 Volts AC and a maximum current draw of 4.2 Amps at CT, this processor module is engineered to handle demanding industrial conditions efficiently. Its flexible extension options and complete protection measures ensure long-lasting reliability and operational safety.
